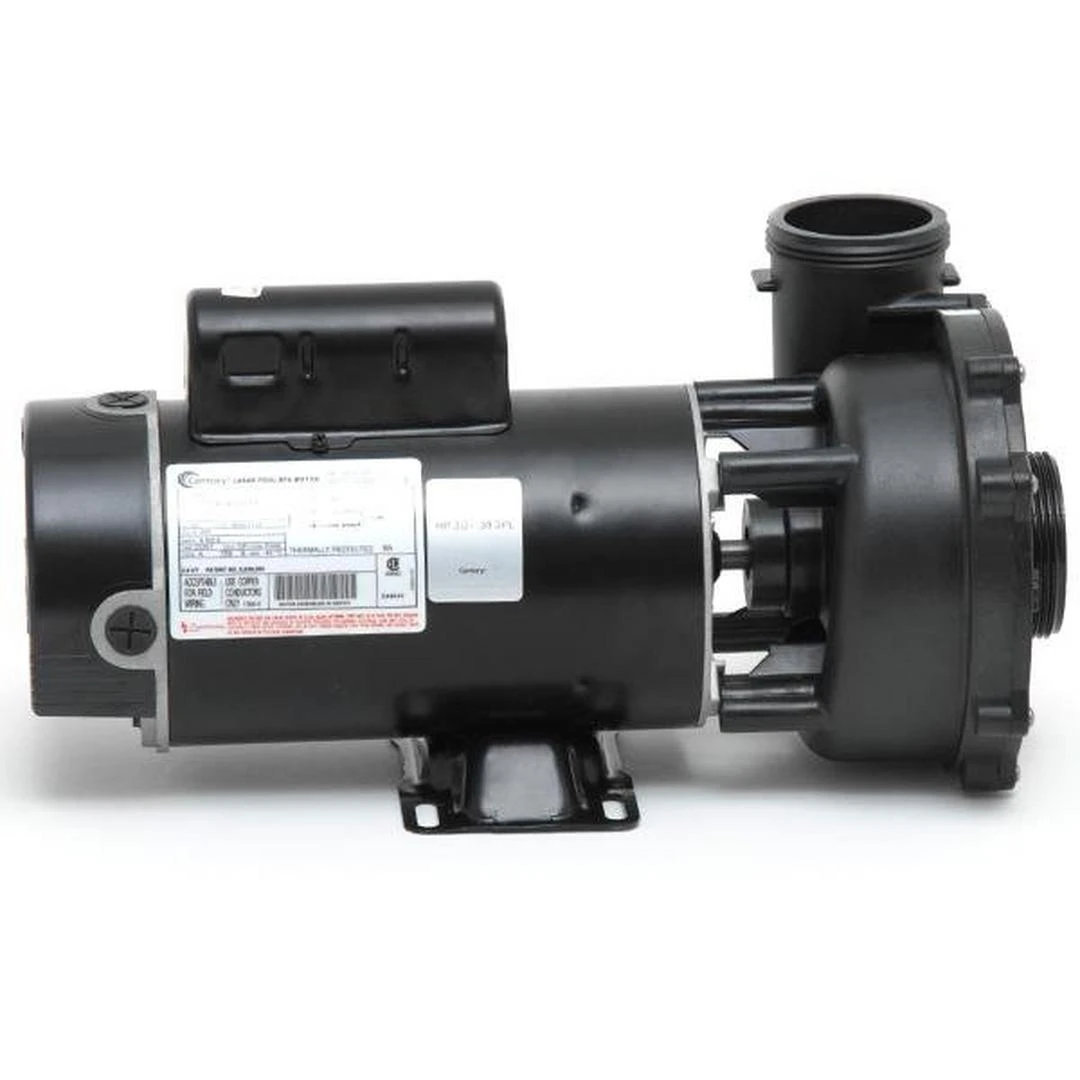

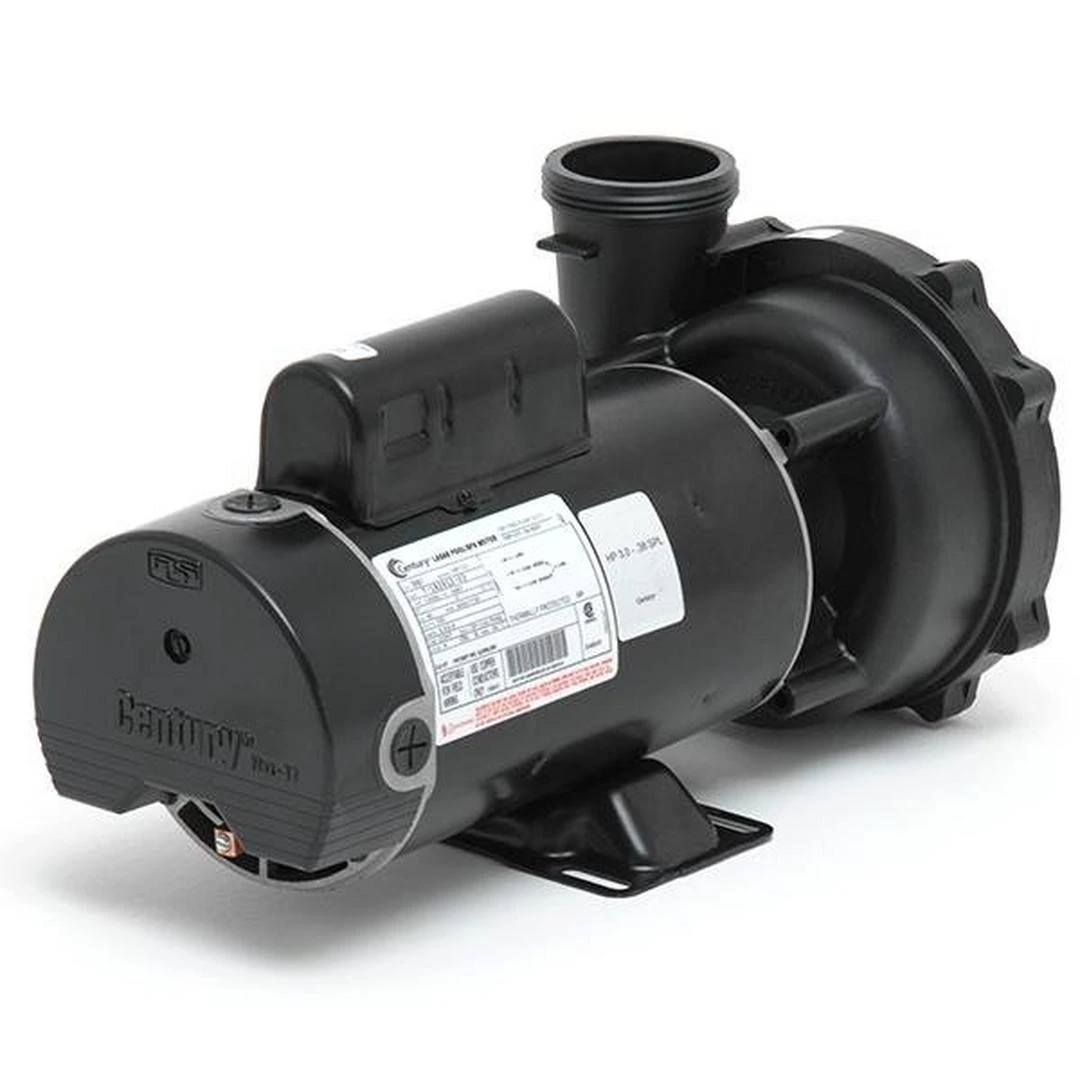

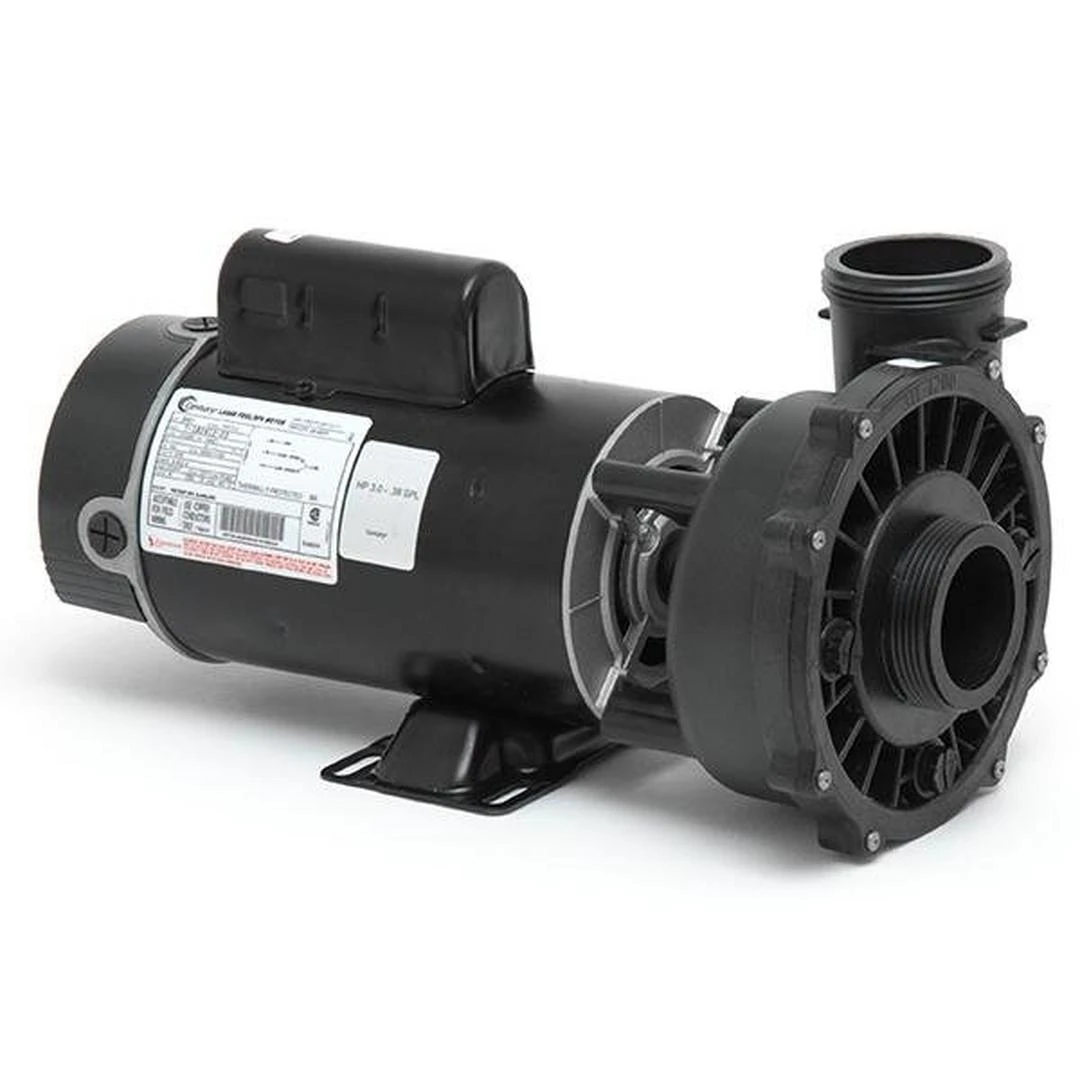

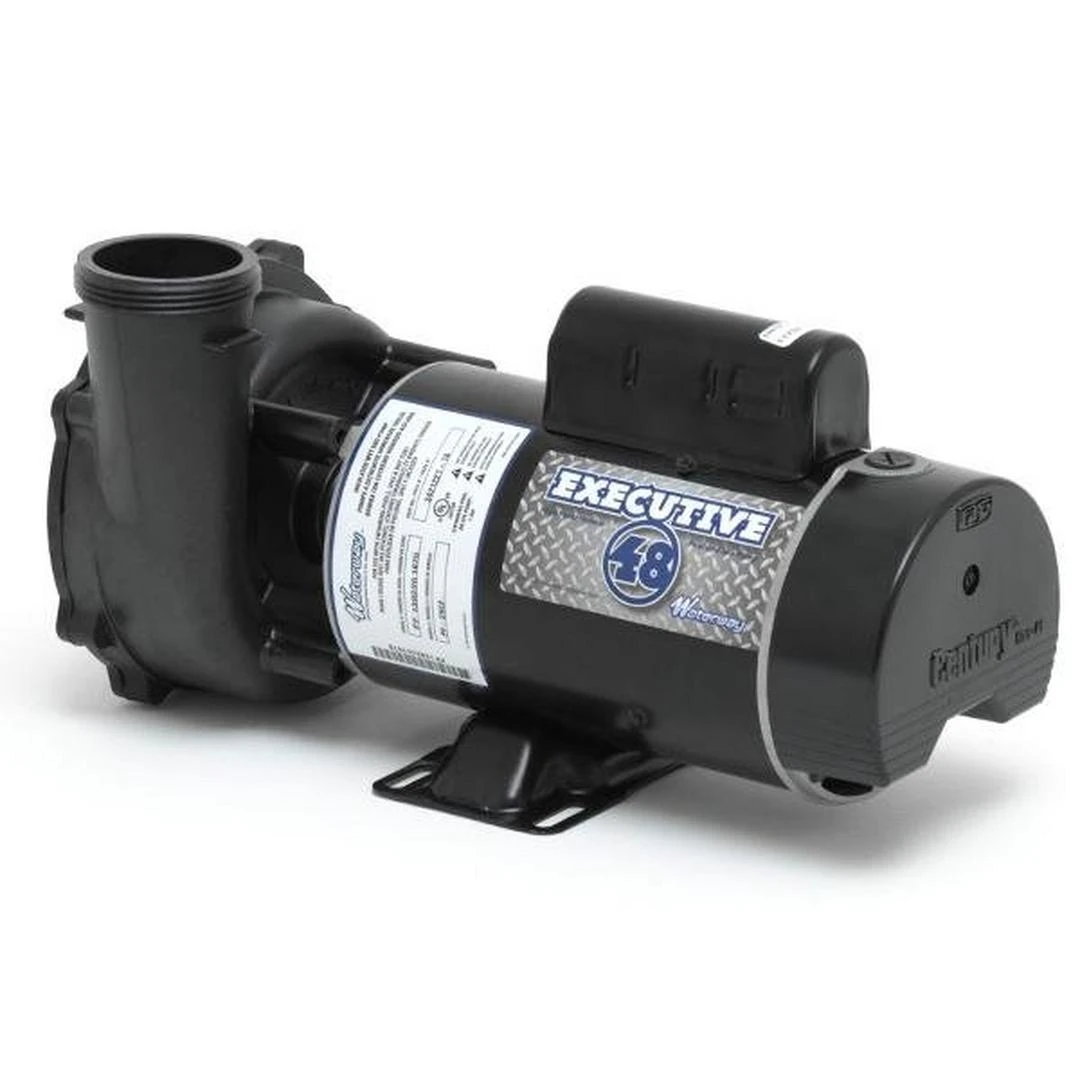

Waterway – Executive 48 3421221-1A 3HP Dual-Speed 48 Frame Spa Pump 230V

Waterway Executive 48 – 3421221-1A – 3HP Dual-Speed 48 FR Spa Pump, 2″ Intake, 2″ Discharge, 230V spa pump has increased efficiency with its 2-Speed design.

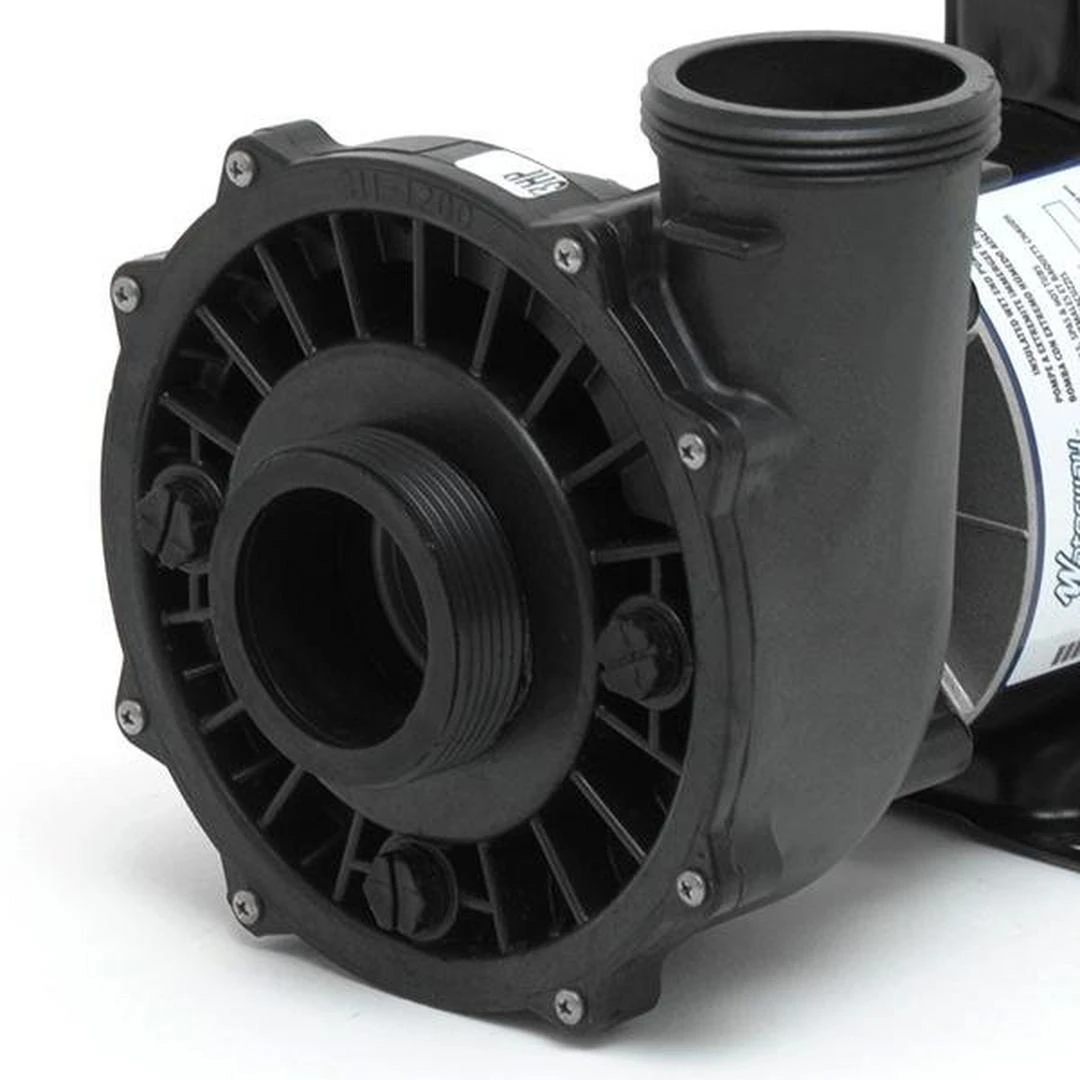

Waterway Executive 48 – 3421221-1A – 3HP Dual-Speed 48 FR Spa Pump, 2″ Intake, 2″ Discharge, 230V spa pump has increased efficiency with its 2-Speed design. The Waterway Executive 48 is thermally protected to extend the life expectancy of the motor and a highly versatile wet end with a large 6-1/2″diameter that can be rotated 90 degrees. It’s specifically designed for 48 frame motors and has a 3HP rating with 230 volts. The Executive has a two year warranty on the motor and a 3 year warranty on the wet end.
Center vs. Side Discharge Pumps

• Swimming pool and spa pumps are classified, in part, according to the orientation of their discharge openings. Center discharge pumps have an opening located in the center of the wet end, while side discharge pumps have an opening located on the side of the wet end. Water is propelled through the openings and flows out through the jets in your spa. Side discharge pumps are up to 60% more efficient for pumping out high volumes of water than center discharge pumps.

What the frame size on a spa pump mean?

• The frame size on a spa pump is the physical size of the spa pump motor. The frame is the piece that mounts the wet end to the motor. The frame size is located on the motor’s ID plate, usually marked with an F for frame size. The thru-bolt spacing is also an indicator of frame size. A 48 frame motor has bolts spaced less than 4 inches apart, and the 56 frame motor has bolts with spacing more than 4 inches apart.

Pump Speed:	Dual
Horsepower:	3 HP
Voltage:	240V
Parts and Hardware:	Pump
Discharge Type:	Side Discharge
Product Type:	Spa Pump
Manufacturer:	Waterway
Warranty:	2-year on motor, 3-year on wet end
