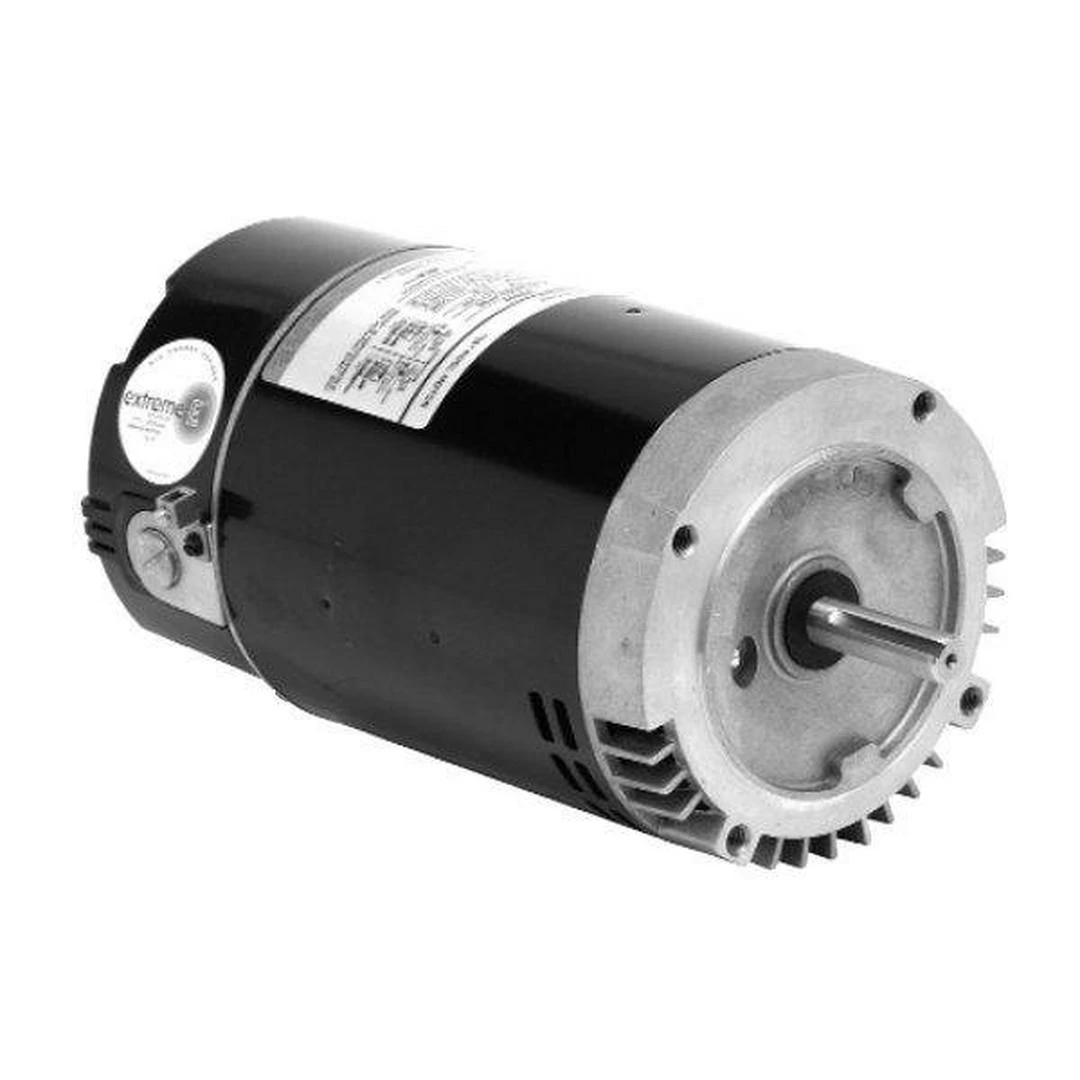

U.S. Motors - Emerson 56C C-Flange Single Speed 3/4HP Full Rated Pool And Spa Motor

U.S. Motors - Emerson 56C C-Flange Single Speed 3/4HP Full Rated Pool And Spa Motor - Image 2

U.S. Motors – Emerson 56C C-Flange Single Speed 3/4HP Full Rated Pool And Spa Motor

Original price was: $149.40.Current price is: $99.99.

SKU: AW50A 38506 Categories: PARTS, Pool Pump Motors, Single Speed Pump Motors

100% environmentally friendly material
Secure Shopping with Safe Payments
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

The Emerson 56 C-Flange Motor is dripproof to prevent water damage, built with ventilation openings.

50 Degree C Ambient
1081 Design
Continuous Duty
Class B Insulated
303 Stainless Steel Shaft
Thermally Protected
Service Factor: 1.5
RPM: 3450
Shaft: Keyed
6.0/12.0A 115V/230V
Length without Shaft: 10.77

For precision and advanced technology, the Emerson 56 C-Flange Motor for pools and spas is engineered with a two-compartment design, sporting triple bearing protection and sealed ball bearings. With a switchless design, the Emerson 56 C-Flange Motor is drip proof to prevent water damage, built with ventilation openings. It requires little maintenance and has been designed for dependability and a long lifespan. The Emerson 56 C-Flange Motor consistently operates at one speed, working at 3/4HP and 115/230V.

Speed Settings:	Single Speed
Pool Type:	In Ground
Horsepower:	3/4 HP
Service Factor:	1.50 – 1.75
Voltage:	120V / 240V
Flange Type:	C Flange
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	56 Frame
Energy Efficiency:	Standard
Manufacturer:	U.S. Motors Emerson
Pump Speed:	Single
Service Factor:	1.5
Total Horsepower:	1.13 THP
