U.S. Motors – EB809/ASB809 C-Flange 2HP Full Rated 56J 230V Pool & Spa Pump Motor
Original price was: $334.00.$99.99Current price is: $99.99.
- 100% environmentally friendly material
- Secure Shopping with Safe Payments
- The home of quality products.
- Experience the difference quality makes.
- Two Compartment
- 50 Degree C Ambient
- 1081 Design
- Continuous Duty
- Class B Insulated
- Open Dripproof
- Sealed Ball Bearings
- 303 Stainless Steel Shaft
- Service Factor: 1.2
- RPM: 3450
- 10.3-9.5A 208-230V
- Shaft: Threaded
- Length without Shaft: 12.02

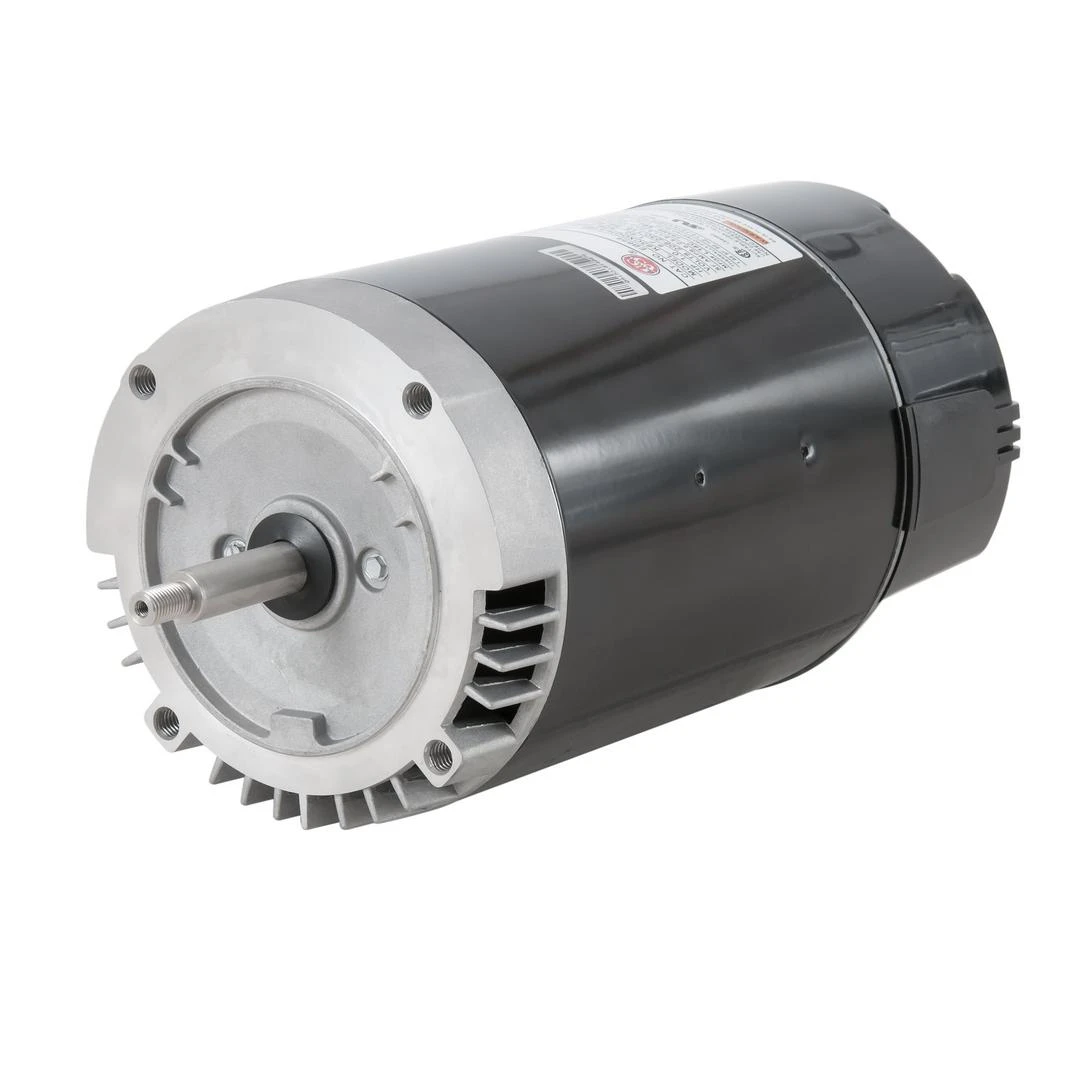

The U.S. Motors Emerson EB809/ASB809 C-Face 2 HP Full Rated 56J 208-230V Pool and Spa Pump Motor is a powerfully designed replacement motor.
Similar to spa and pool replacement motors, the Emerson 56 C-Flange Motor is a two-compartment model with a voltage selection device, running at 2HP and 208-230V. It is Class B-insulated for efficient operation and has been designed with both sealed ballbearing sand triple bearing protection. The Emerson replacement motor has an open drip-proof design for water damage prevention and is thermally protected.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.
| Flange Type: | J Flange |
| Energy Efficiency: | High Energy Efficiency |
| Pool Type: | In Ground |
| Voltage: | 208 – 230V |
| Voltage: | 240V |
| Service Factor: | 1.00 – 1.25 |
| Speed Settings: | Single Speed |
| Horsepower: | 2 HP |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Manufacturer: | U.S. Motors Emerson |
