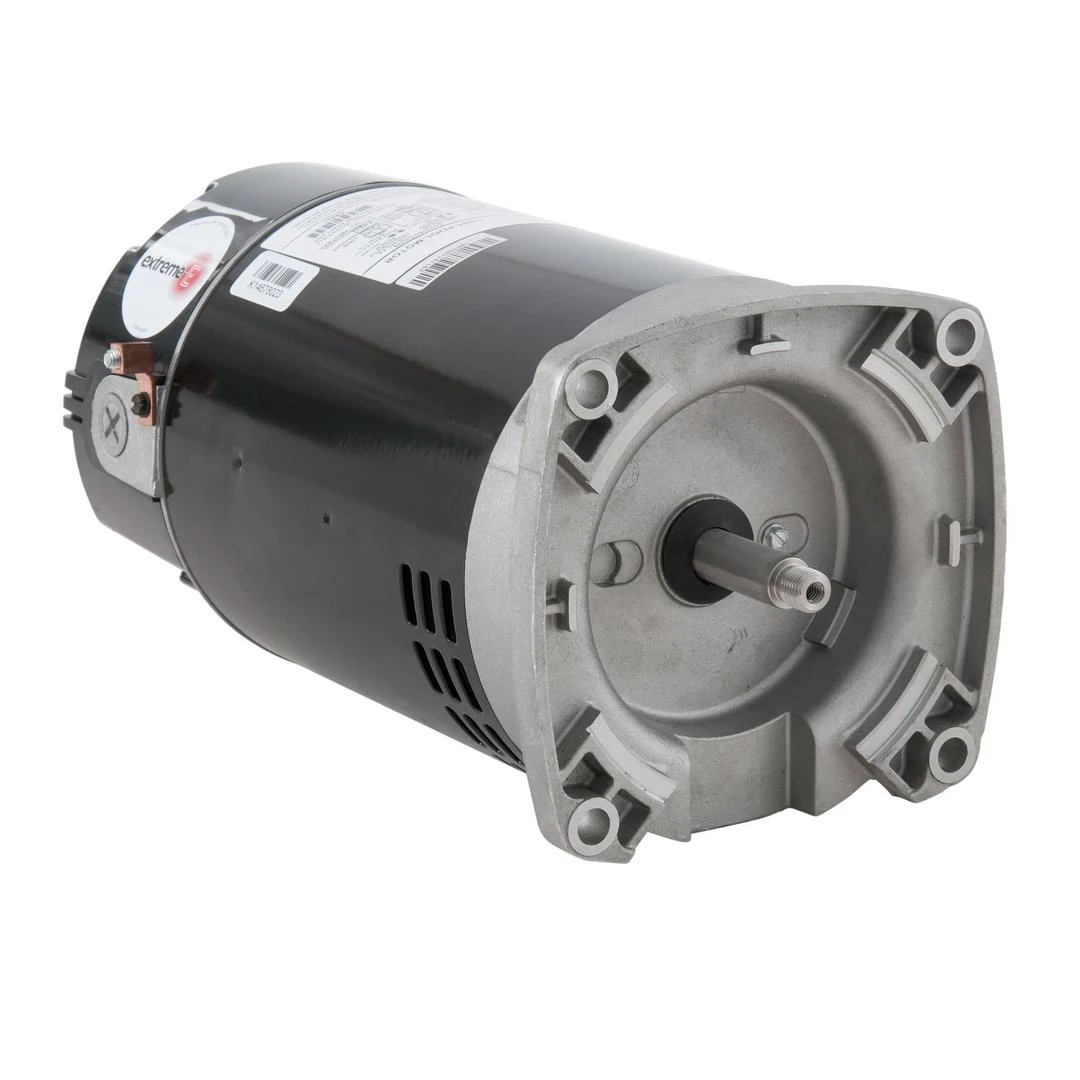

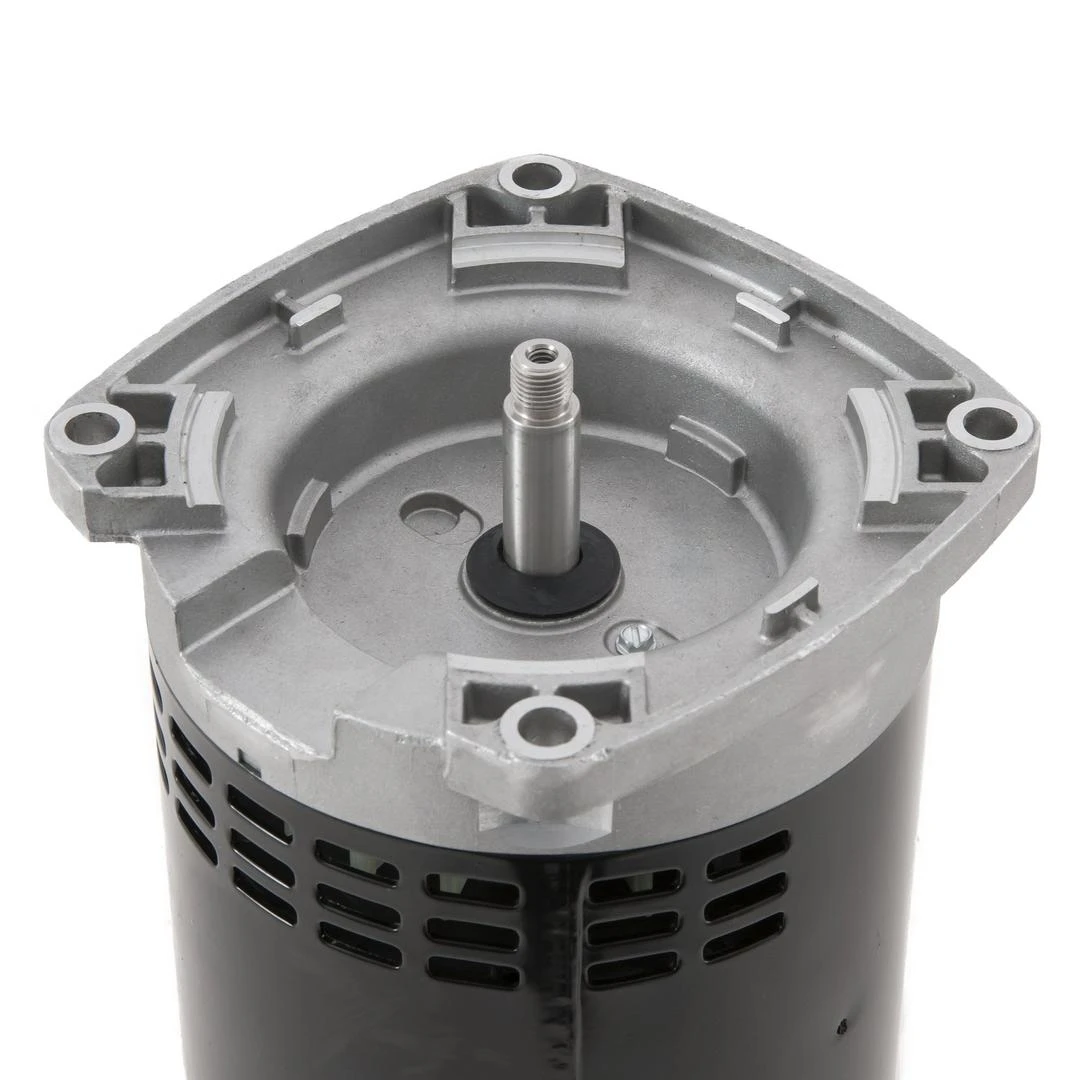

U.S. Motors – ASB841 Square Flange 1HP Full Rated 56Y 115/230V Pool And Spa Motor
Original price was: $399.99.$96.99Current price is: $96.99.
- 100% environmentally friendly material
- Secure Shopping with Safe Payments
- The home of quality products.
- Experience the difference quality makes.
- Two compartments
- Shaft Threads 1/2-20 UNF-2A
- 50 degrees Celsius ambient
- 1081 Design
- Continuous Duty
- Switchless design
- Voltage selection device (dual voltage only)
- Service Factor: 1.65
- RPM: 3450
- Length without Shaft: 11.99
- 7.6-7.2/14.4A 208-230/115V
The U.S. Motors Emerson ASB841 Square Flange 1 HP Full Rated 56Y 115/230V Single Speed Pool and Spa Pump Motor is a powerfully designed replacement motor. Similar to spa and pool replacement motors, the Emerson 56 Y-Frame Motor is a two-compartment model with a voltage selection device, running at 1HP and 115/230V. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 1 HP rating delivers optimum performance.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.
| Voltage: | 115V / 208 – 230V |
| Flange Type: | Square Flange |
| Horsepower: | 1 HP |
| Speed Settings: | Single Speed |
| Voltage: | 120V / 240V |
| Energy Efficiency: | High Energy Efficiency |
| Service Factor: | 1.50 – 1.75 |
| Pool Type: | In Ground |
| Motor Frame: | 56Y Frame |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Manufacturer: | U.S. Motors Emerson |
| Product Type: | Pool Pump |
