Intermatic - T106M/T104M In Outdoor Enclosure

Intermatic - T106M/T104M In Outdoor Enclosure - Image 2

Intermatic - T106M/T104M In Outdoor Enclosure - Image 3

Intermatic - T106M/T104M In Outdoor Enclosure - Image 4

Intermatic – T106M/T104M In Outdoor Enclosure

Original price was: $314.99.Current price is: $98.99.

SKU: AW50A 308739 Categories: Automatic Controls, EQUIPMENT

100% environmentally friendly material
Secure Shopping with Safe Payments
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

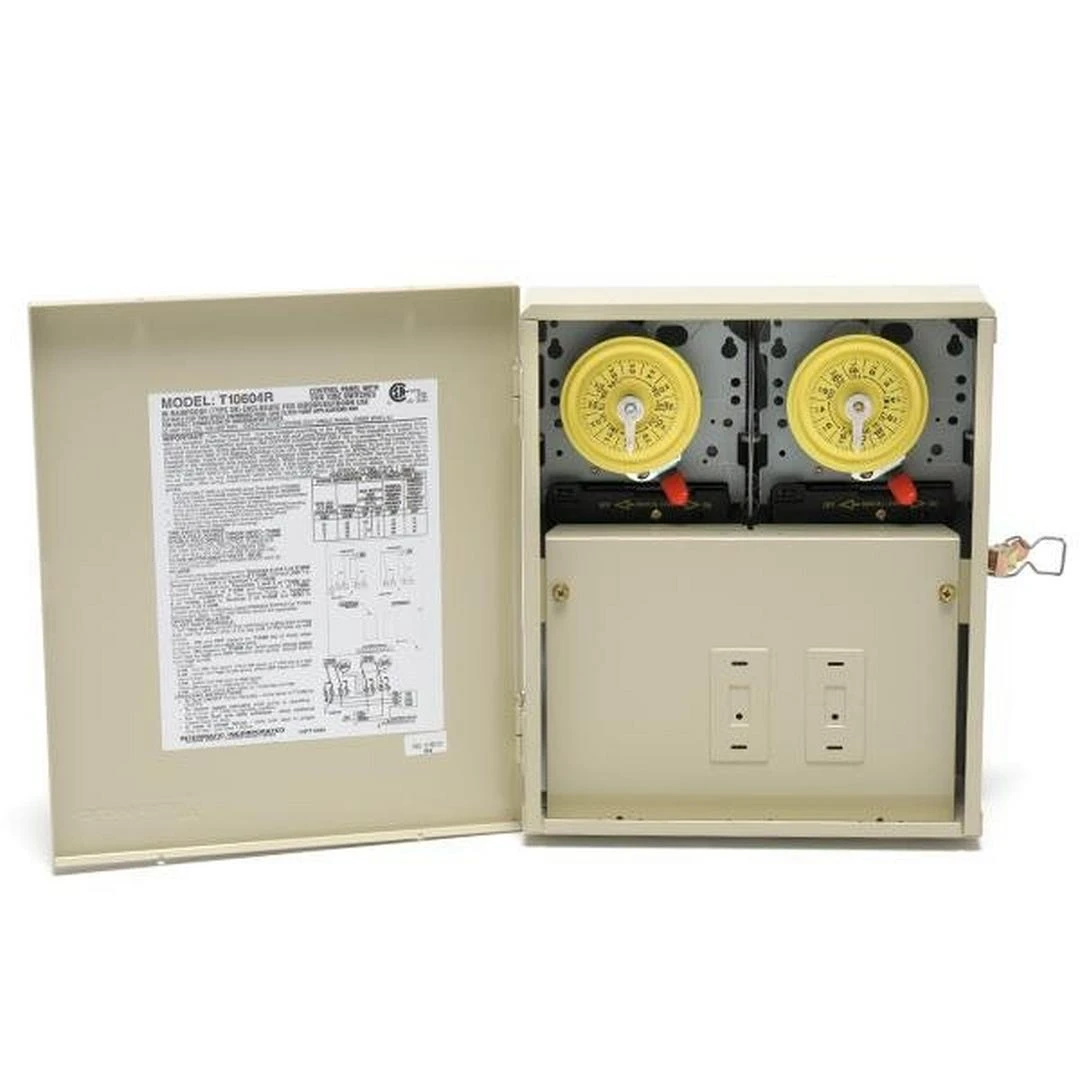

Intermatic T106M/T104M in Outdoor Enclosure – T10604

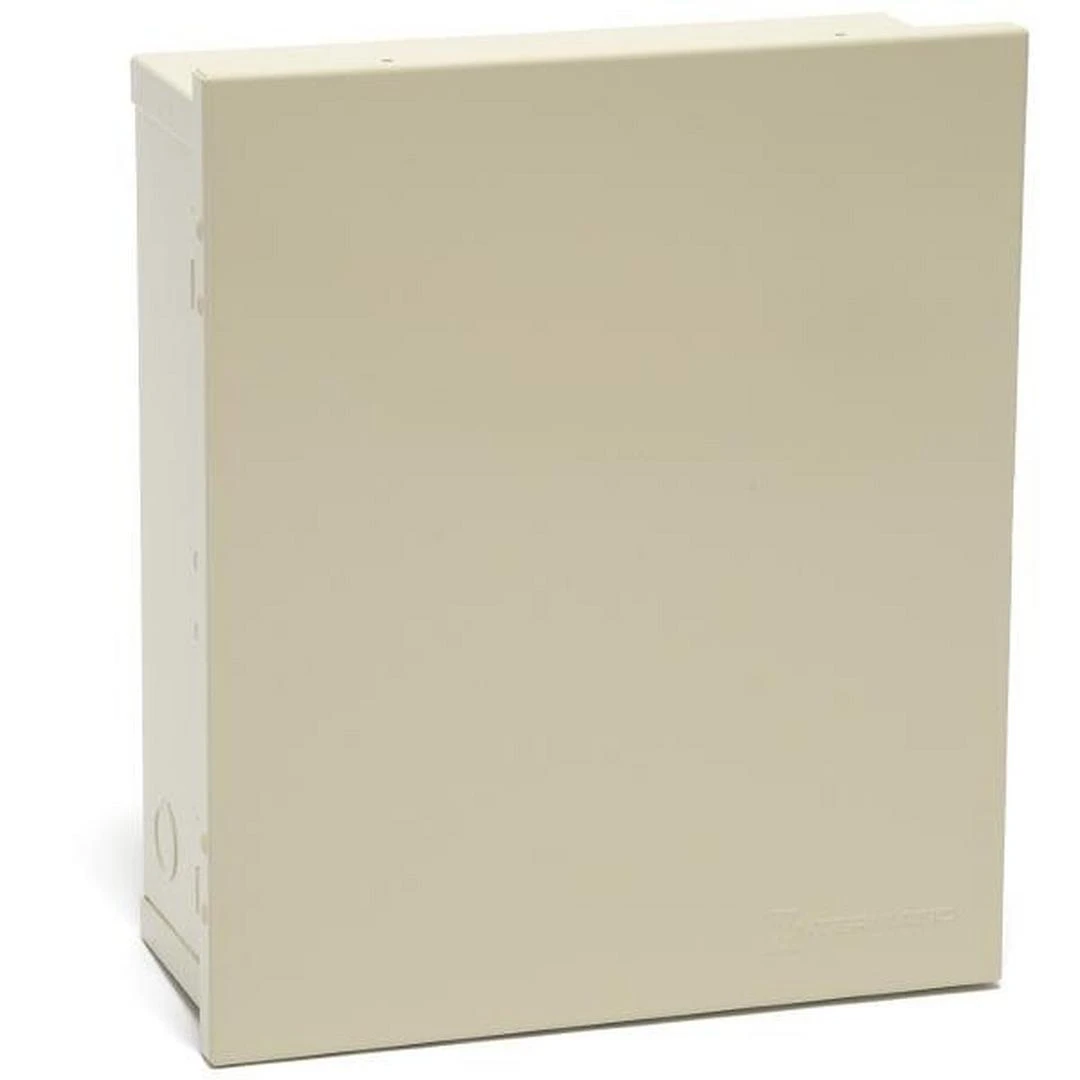

Case: 20-3/4 (52.7 cm) high x 12-3/4 (32.4 cm) wide x 4-1/4 (10.8 cm) deep, 0.048 steel with electrostatically applied light beige finish.
Knockouts: Seven combination 1/2″ – 3/4″ and three combination 3/4-1 knockouts on the bottom. Five combination 1/2″ – 3/4″ on the left side. One 1-3/4 x 2-3/4 knockout on the right side for mounting switches and GFCI.
Panel Rating: 125 Amp max. 120-240 VAC or 120-208 VAC single phase – 60Hz
Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) – 120 VAC; 5 HP (28 FLA) – 240 VAC
Agency Approval: CSA/C-US

The T40000R Series Control Panels reduce installation costs and provide all of the electrical requirements for any pool and/or spa installation. They offer an all-in one electrical control center which can be custom wired for a wide variety of requirements, and eliminate the need for additional junction boxes and service panels. The enclosure accepts any combinations of P1353ME or P4243ME or T100M or RC2000M or PF1000M Series mechanisms.
