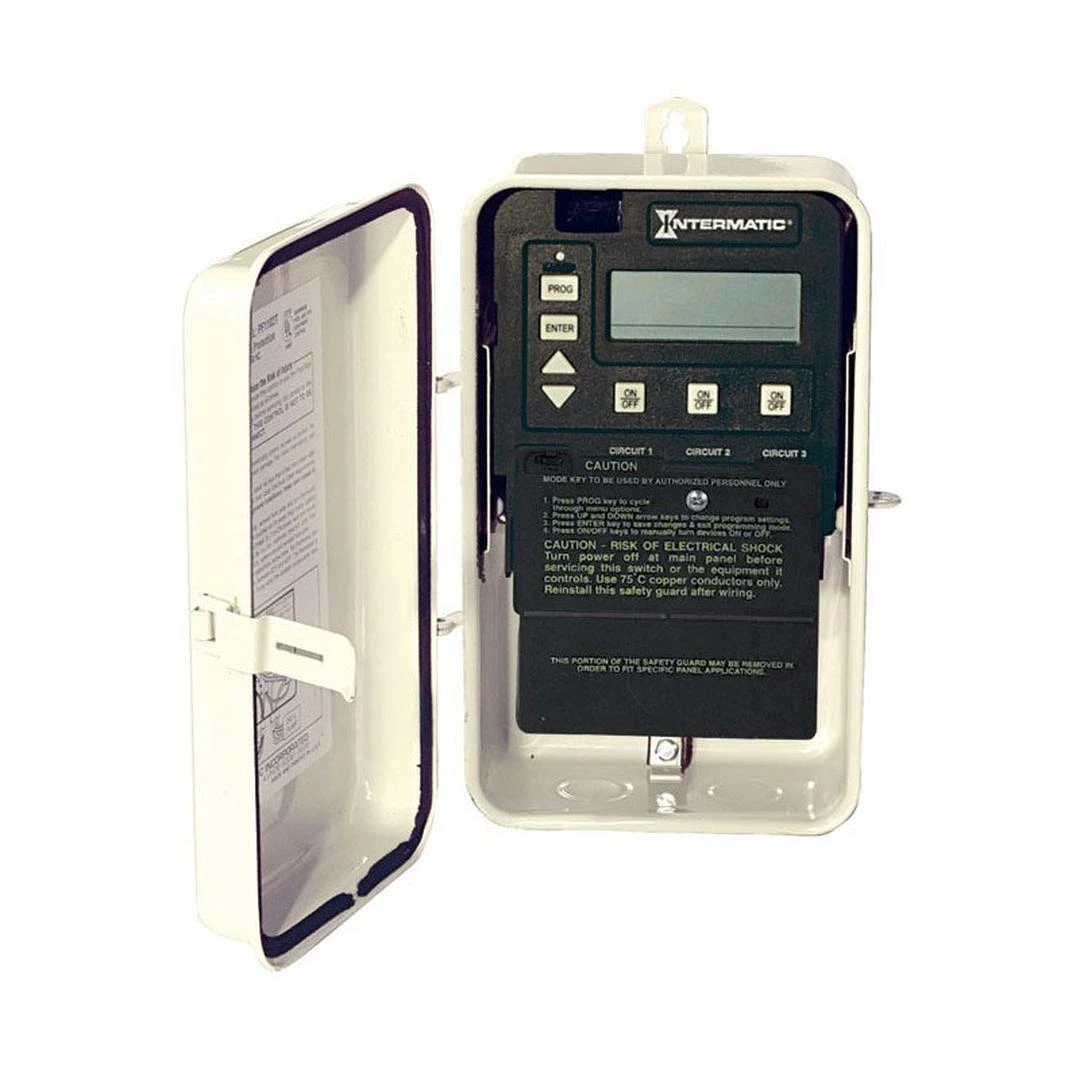

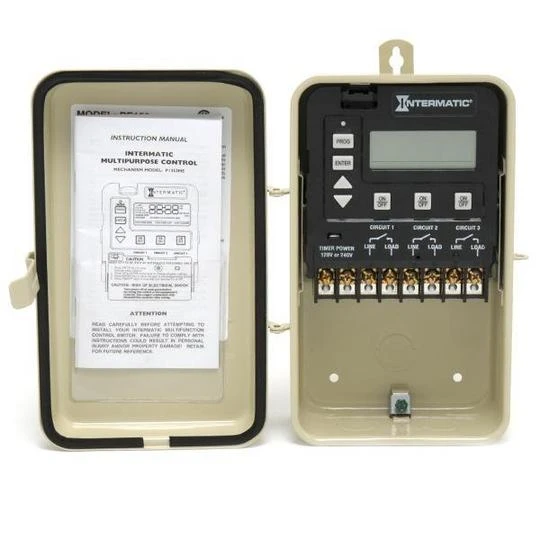

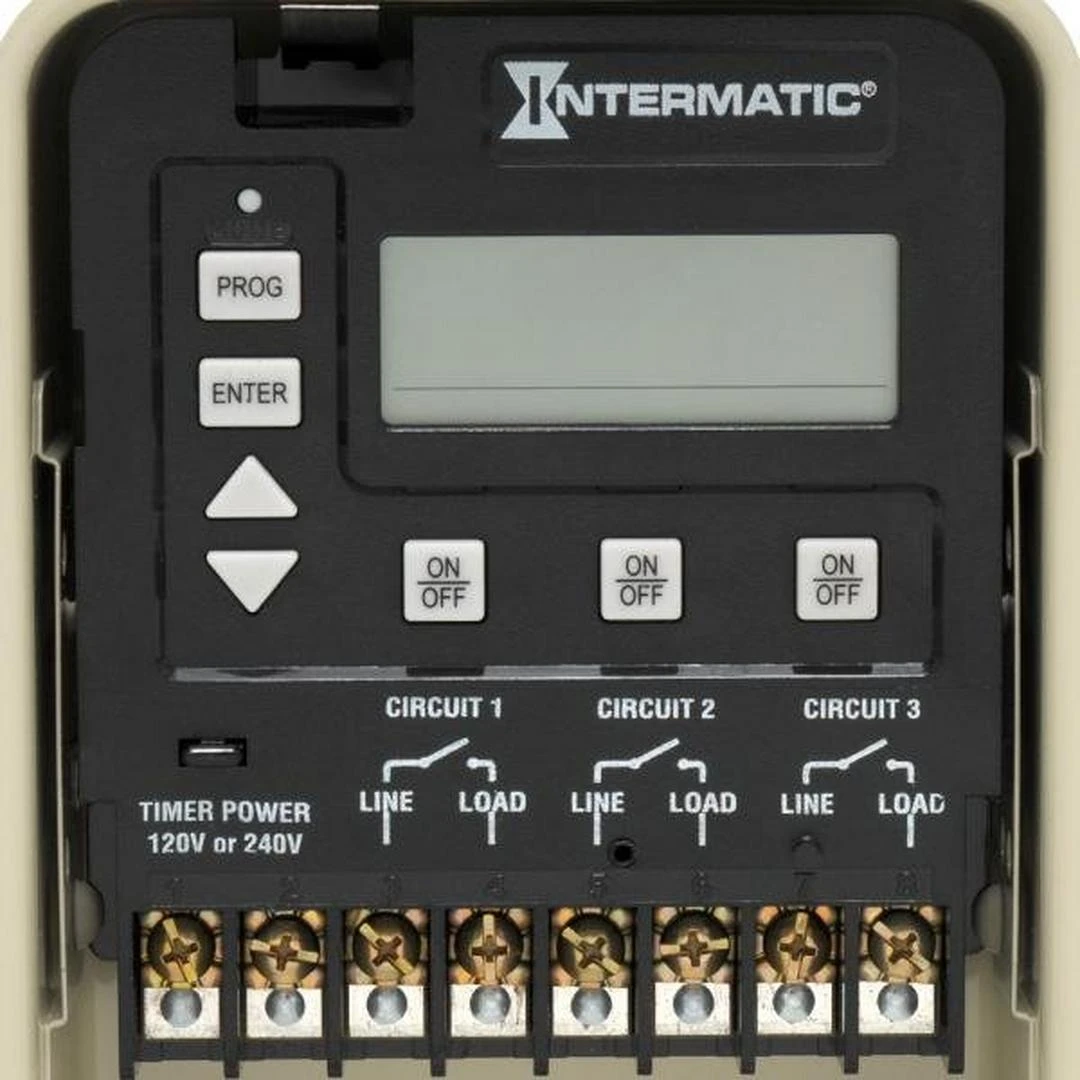

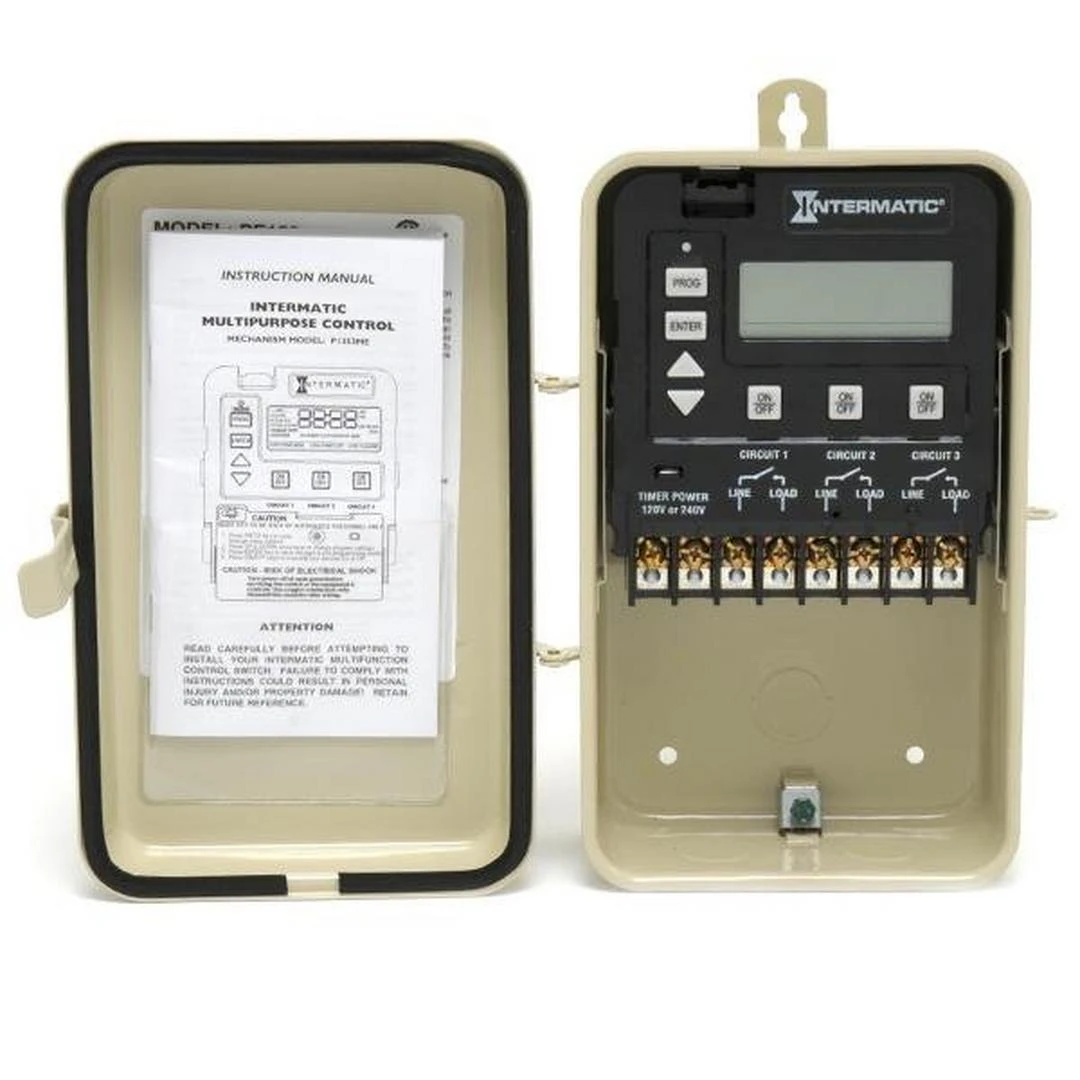

Intermatic – P1353ME Digital 3-circuit Time Control With Metal Enclosure
Original price was: $379.99.$98.99Current price is: $98.99.
- 100% environmentally friendly material
- Secure Shopping with Safe Payments
- The home of quality products.
- Experience the difference quality makes.

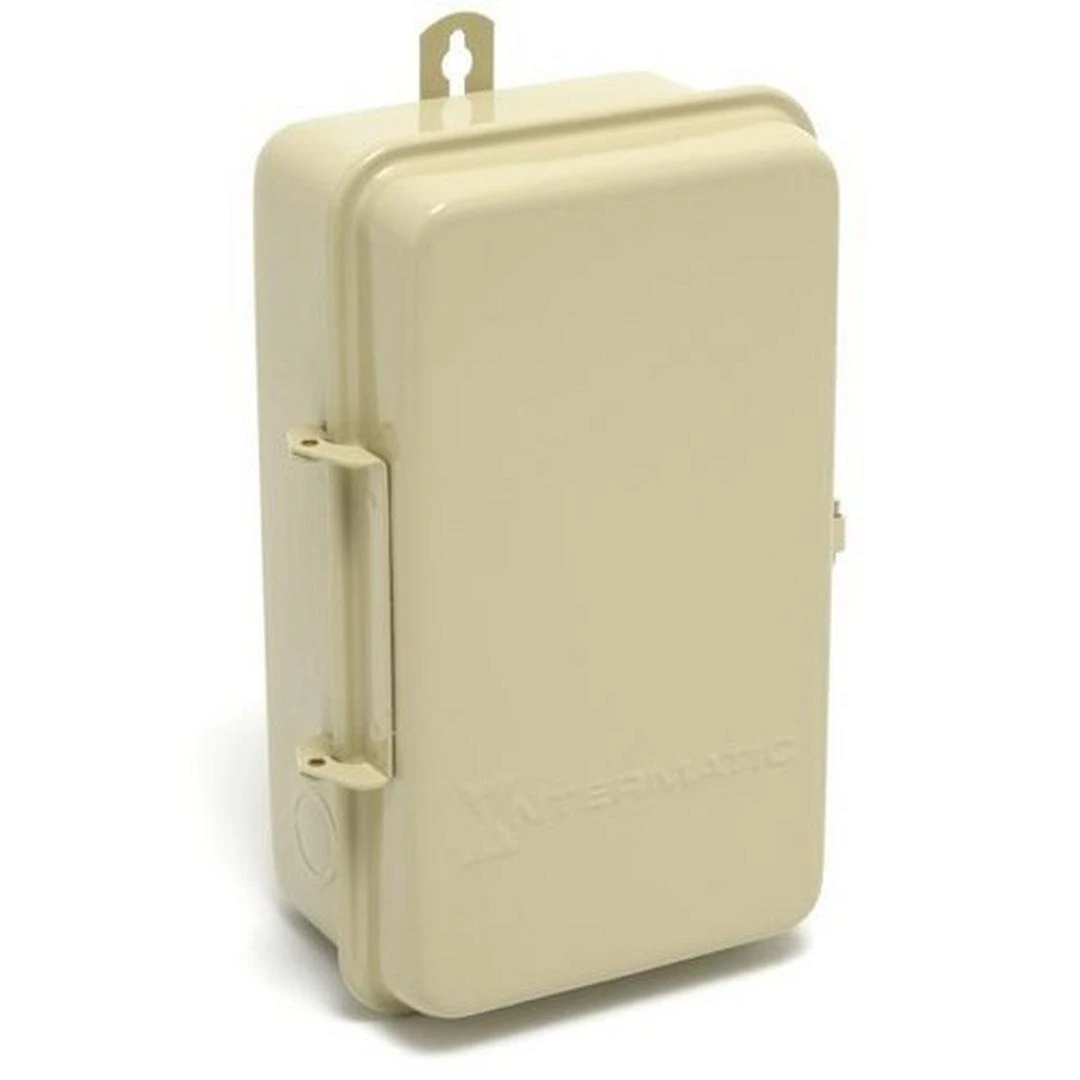

- Case: NEMA 3R rated for indoor-outdoor installation. 9-3/8 (23.8 cm) high, 5-1/2 (14.0 cm) wide, 3-5/8 (9.2 cm) deep in beige finish. P suffix models are same dimensions, except made from outdoor grade plastic.
- Knockouts: Combination 1/2 3/4 nominal knockouts, one on back and each side of case and two on bottom.
- Switch Rating (each circuit): 20 Amp Resistive, 120/240 VAC, 50/60 Hz; 20 Amp FLA @ 120 VAC, 96 Amp LRA @ 120 VAC, 50/60 Hz; 17 Amp FLA @ 240 VAC, 80 Amp LRA @ 240 VAC, 50/60 Hz; 5 Amp Tungsten, 120/240 VAC, 50/60 Hz; 5 Amp Ballast, 120/240V VAC, 50/60 Hz
- Agency Approval: CSA/C-US
Intermatic P1353ME Digital 3-circuit Time Control with Type 3R Metal Enclosure. Controls single- and two-speed pumps and cleaner/booster pumps. One of Intermatic’s latest innovations, the P1353ME allows the ability to program up to three circuits. Beyond single and two-speed pump/booster pump applications, auxiliary modes can control pumps up to 3HP as well as underwater, garden and/or fountain lighting. Countdown and override features allow cycle interruptions when pool/spa service is required. All timing and protection associated with filter pump/booster pump combos and two-speed pumps have already been integrated into the digital software. The Mini-PE Series is available in both metal and plastic enclosures and with a wired remote command, freeze probe or both. See the chart below for details. Intermatic makes it simple to convert your P-Series Digital Control into a Wireless Control System. Simply install a Panel Mounted Transceiver (RC650) and Hand-Held Transceiver (PE950) to any Mini-PE Series control, which allows the system to display the status of each of the three circuits as well as pool or spa water temperature, pool or spa thermostat set point, heating status, and overall communication status.
| Parts and Hardware: | Timer |
| Product Type: | Automatic Control |
| Manufacturer: | Intermatic |
| Product Type: | Pool Maintenance |
