- All Copper Windings
- Auto Protector – Single Speed
- Open Dripproof
- Rotation: CCW Pump End
- Class B Insulation
- 303 Stainless Steel Threaded Shaft
- 50C Ambient
- 60 Hertz
- Capacitor Start Low Speed, PSC High Speed
- UL1081

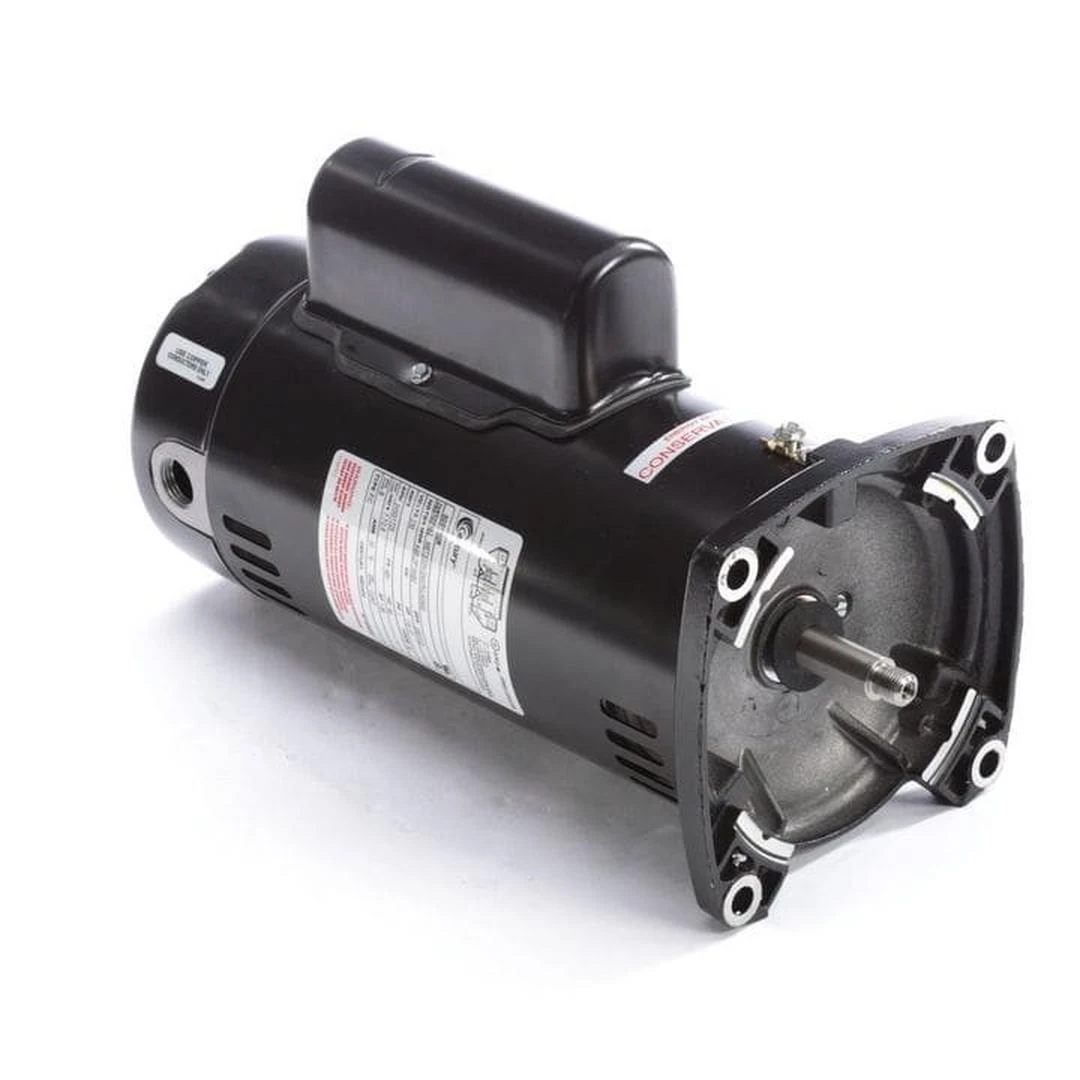

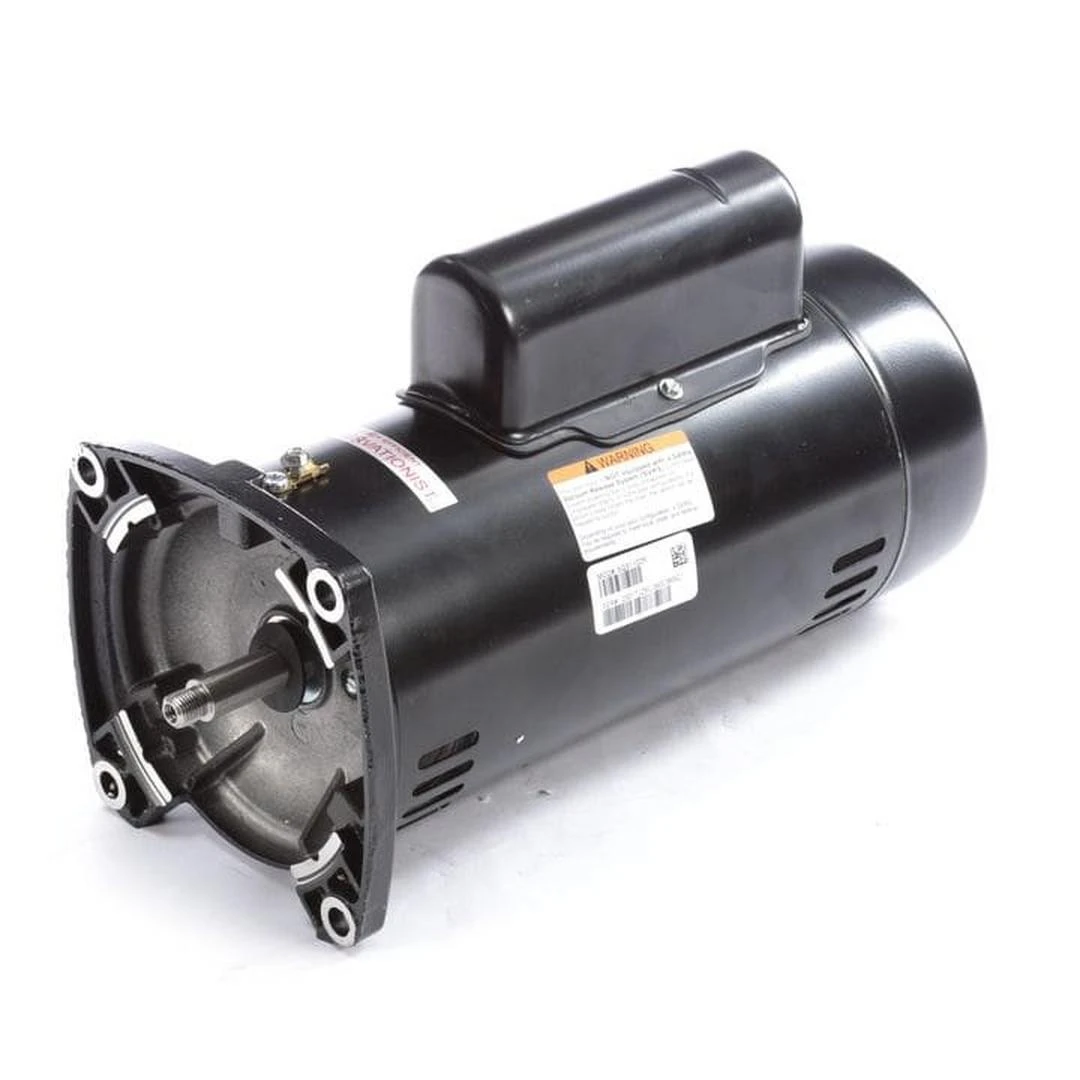

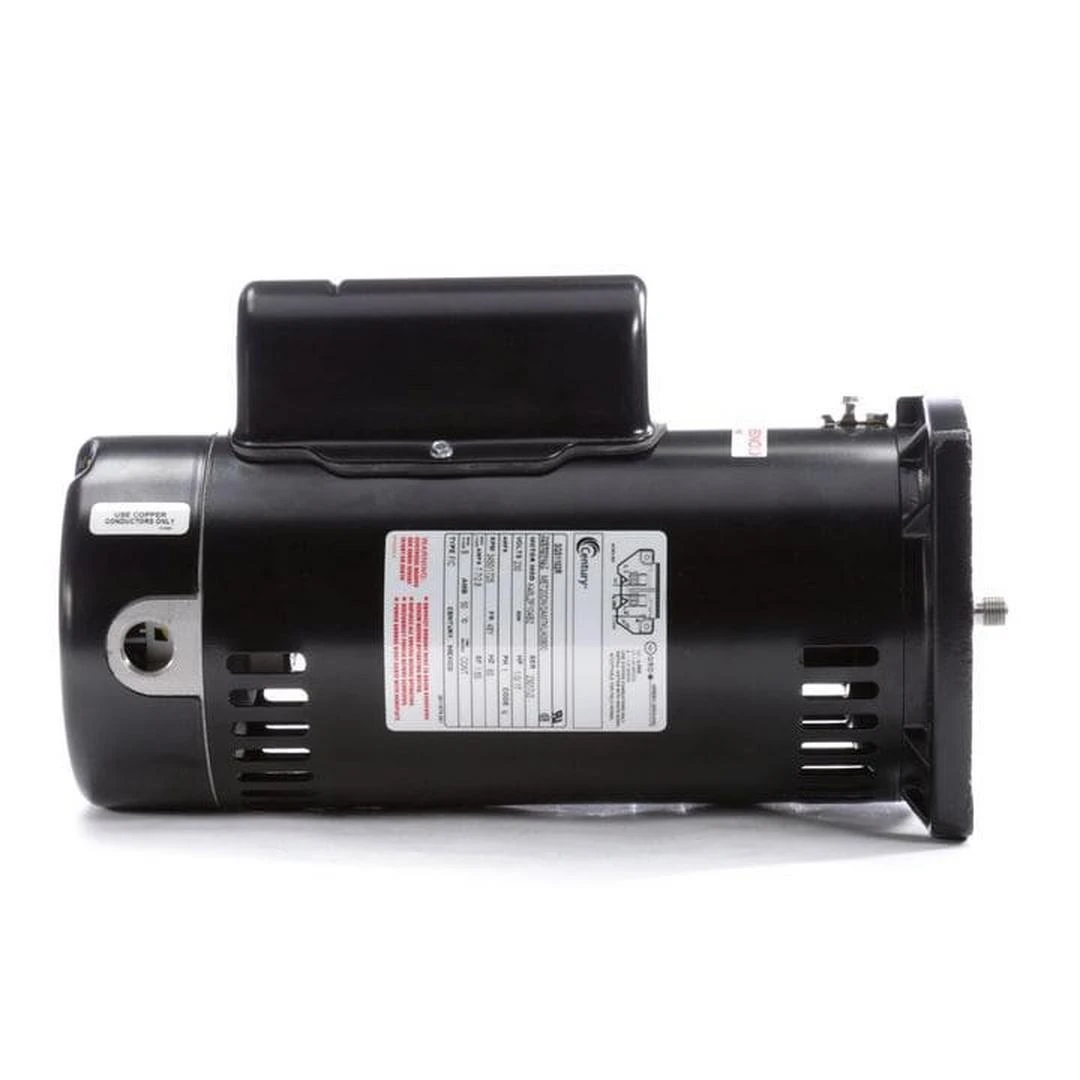

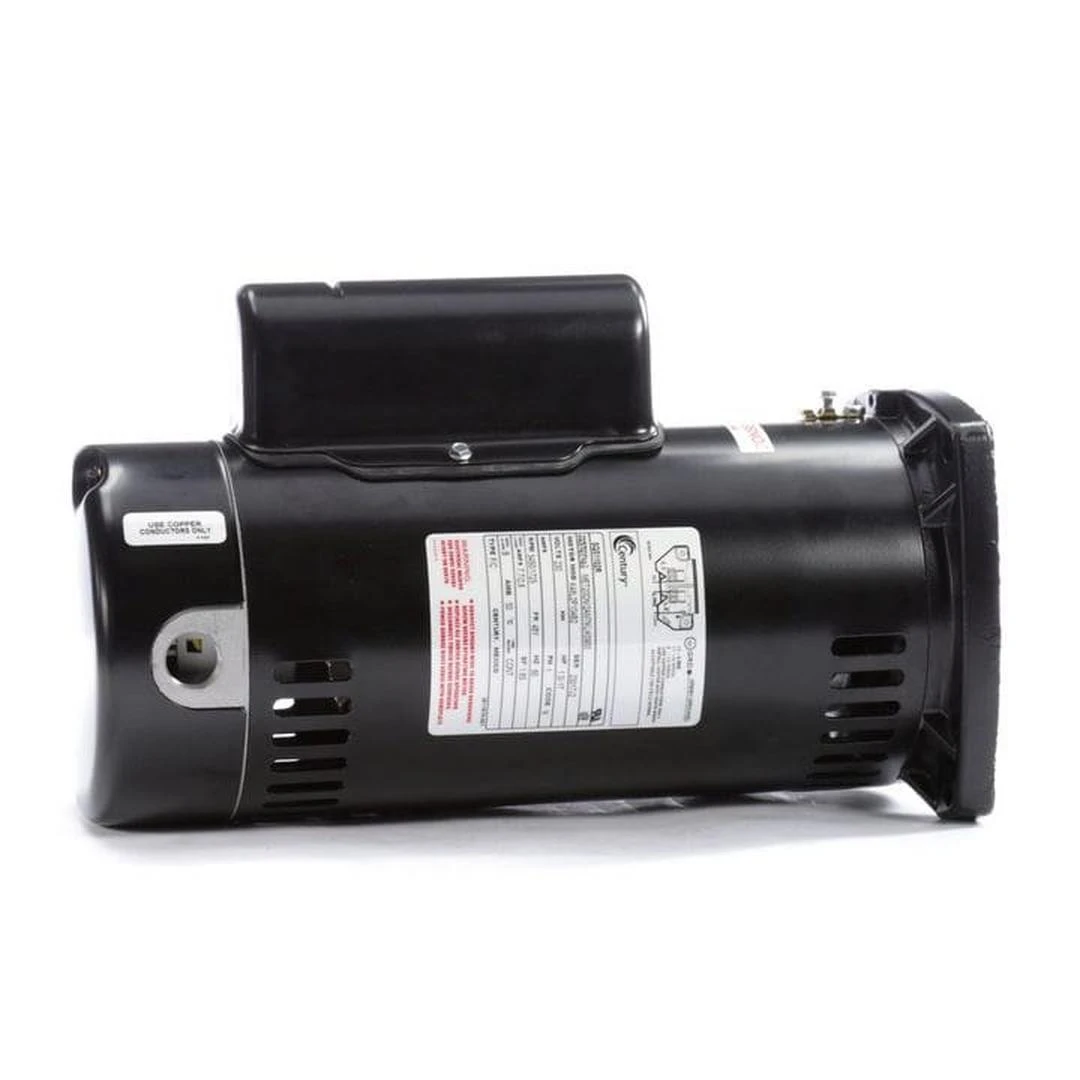

The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its two-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start delivers enhanced performance. With horsepower ratings ranging from 3/4-1/8″P to 2-1/3HP, the Two-Compartment Square Flange Pool Motor comes in Full or Up-Rated models and provides long-lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor is used on many Sta-Rite, Red Jacket, Sears Jet and Pool Pumps products. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with an open drip-proof enclosure, the Two-Compartment Square Flange Pool Motor is sure to last. This motor does not include a hi/lo switch but the end cover and switch assembly may be purchased separately for remote operation. The Two-Compartment Square Flange Pool Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.
| Speed Settings: | Dual Speed |
| Pool Type: | Spa/Hot Tub |
| Flange Type: | Square Flange |
| Service Factor: | 1.50 – 1.75 |
| Installation Type: | Residential |
| Voltage: | 240V |
| Horsepower: | 1 or 1/6 HP |
| Shaft Type: | Threaded |
| Phase Type: | Single Phase |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Motor Frame: | 48 Frame |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
