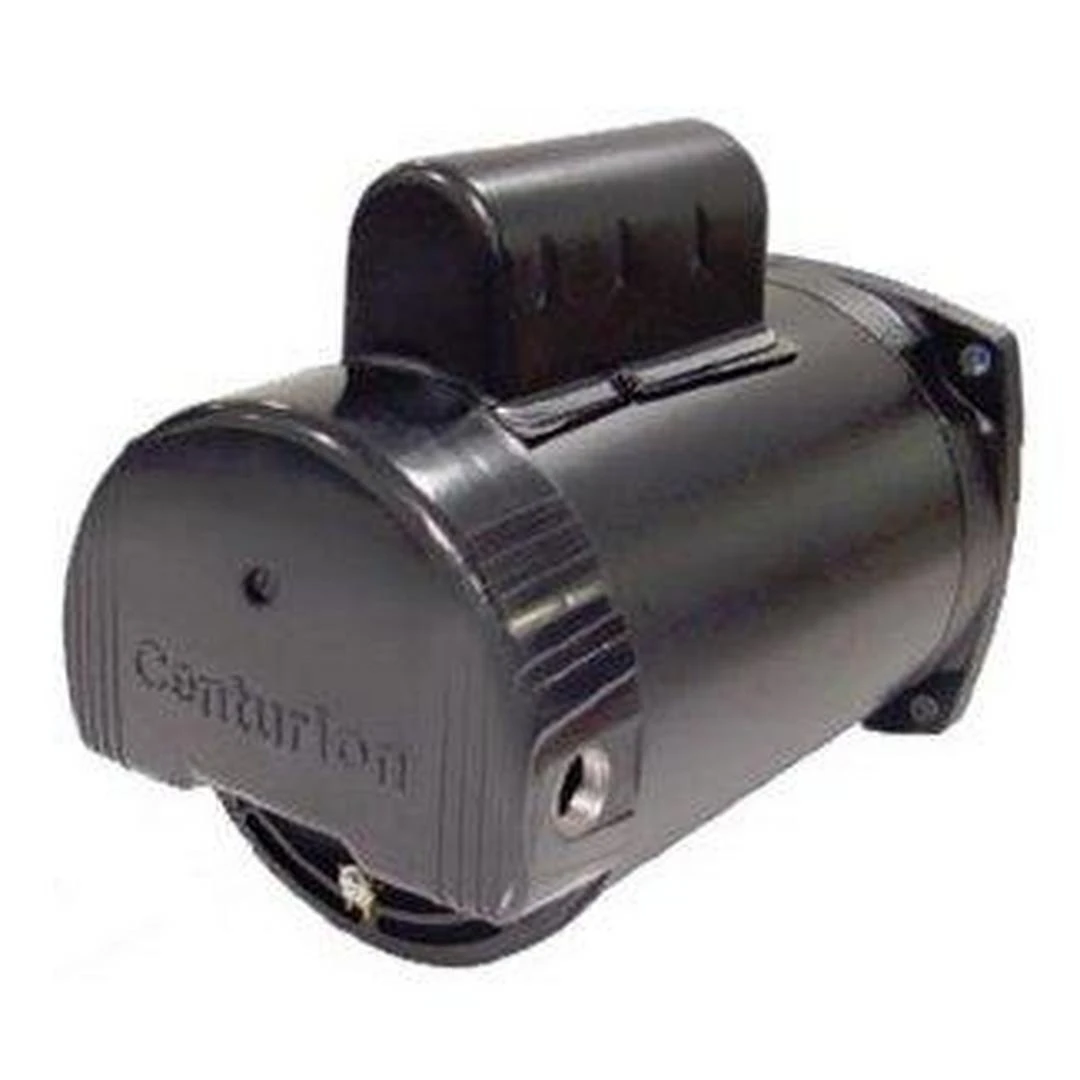

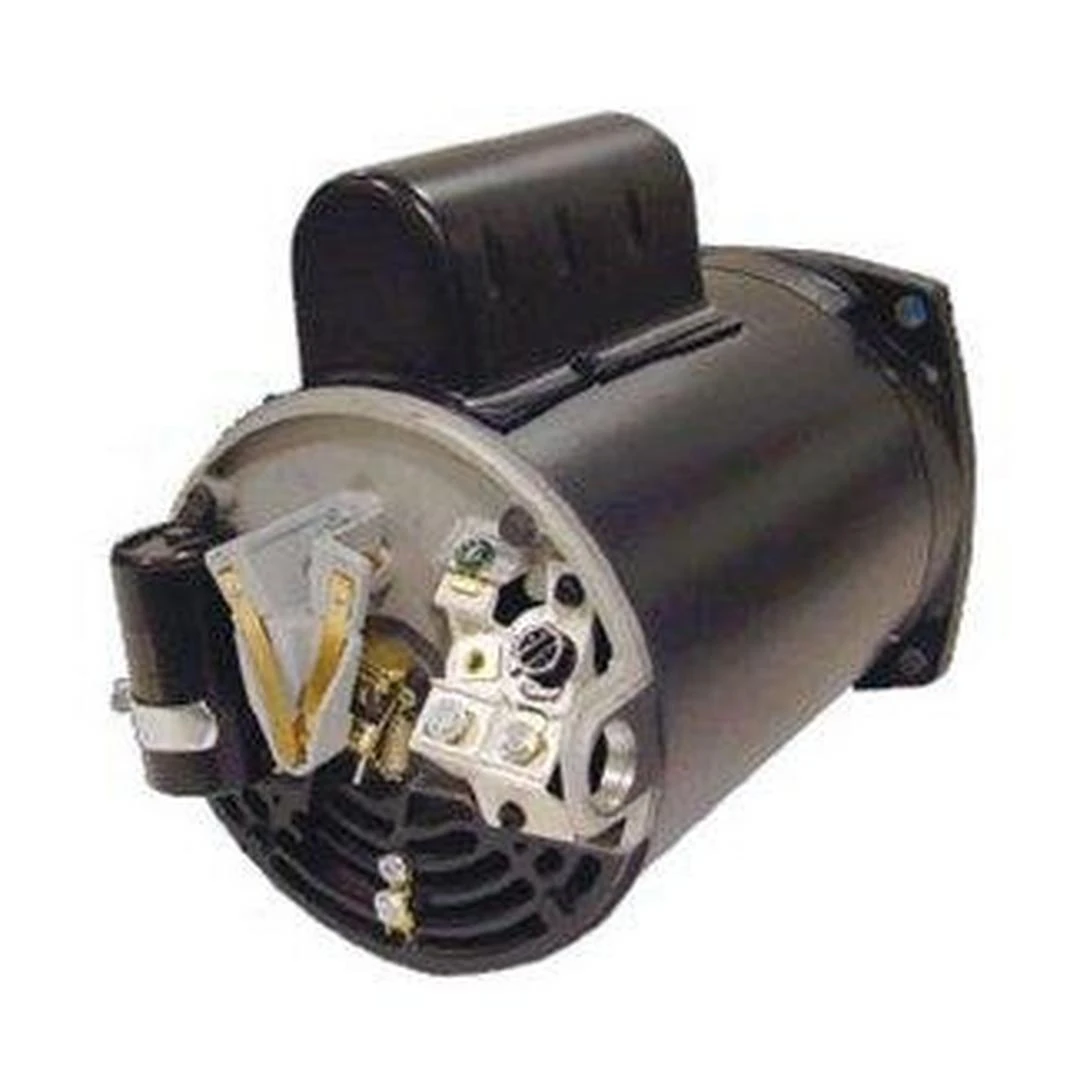

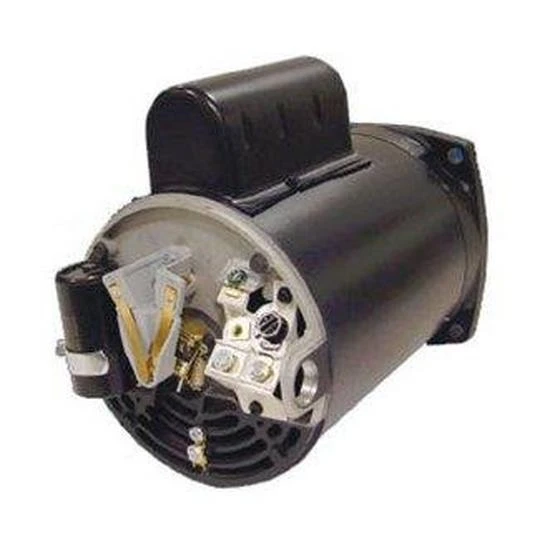

Century A.O. Smith – 56Y Square Flange 3/4 HP Full Rated TriStar Replacement Pump Motor, 115/208-230V
Original price was: $399.99.$99.99Current price is: $99.99.
- 100% environmentally friendly material
- Secure Shopping with Safe Payments
- The home of quality products.
- Experience the difference quality makes.
- 303 Stainless Steel Shaft
- 60 C Ambient
- Automatic Protector
- Ball Bearing
- Capacitor Start/Capacitor Run
- Class F Insulation
- Open Dripproof
- 11.6/7.0-5.8A
The Century Hayward TriStar Motor is a brand new replacement motor for your pool and spa. Designed with a high-quality service factor for automatic overload protection, it ensures a long and healthy lifespan for years of dependable use. Its open drip proof design prevents water infiltration, and its ball bearings and stainless steel shaft extend the life and quality of the motor. Operating at a single speed, the Century Hayward Tristar motor is Class F Insulated to keep cool. It sports high efficiency for optimal energy savings and is available in 1/2″P to 2HP, with 3450RPM.
| Speed Settings: | Single Speed |
| Service Factor: | 1.75 – 2.00 |
| Installation Type: | Residential |
| Horsepower: | 3/4 HP |
| Voltage: | 115V / 208 – 230V |
| Flange Type: | Square Flange |
| Phase Type: | Single Phase |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Energy Efficiency: | Standard |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Pump Speed: | Single |
| Service Factor: | 1.85 |
| Total Horsepower: | 1.39 THP |
