- Auto Protector
- NEMA 56C Face Mount
- Open Dripproof
- Capacitor Start and Capacitor Start-Capacitor Run
- Rotation: CCW Pump End
- Sealed Ball Bearings
- Sealed switch design
- 1081 Design
- 50 C Ambient
- 60 Hertz
- 303 Stainless Steel Shaft

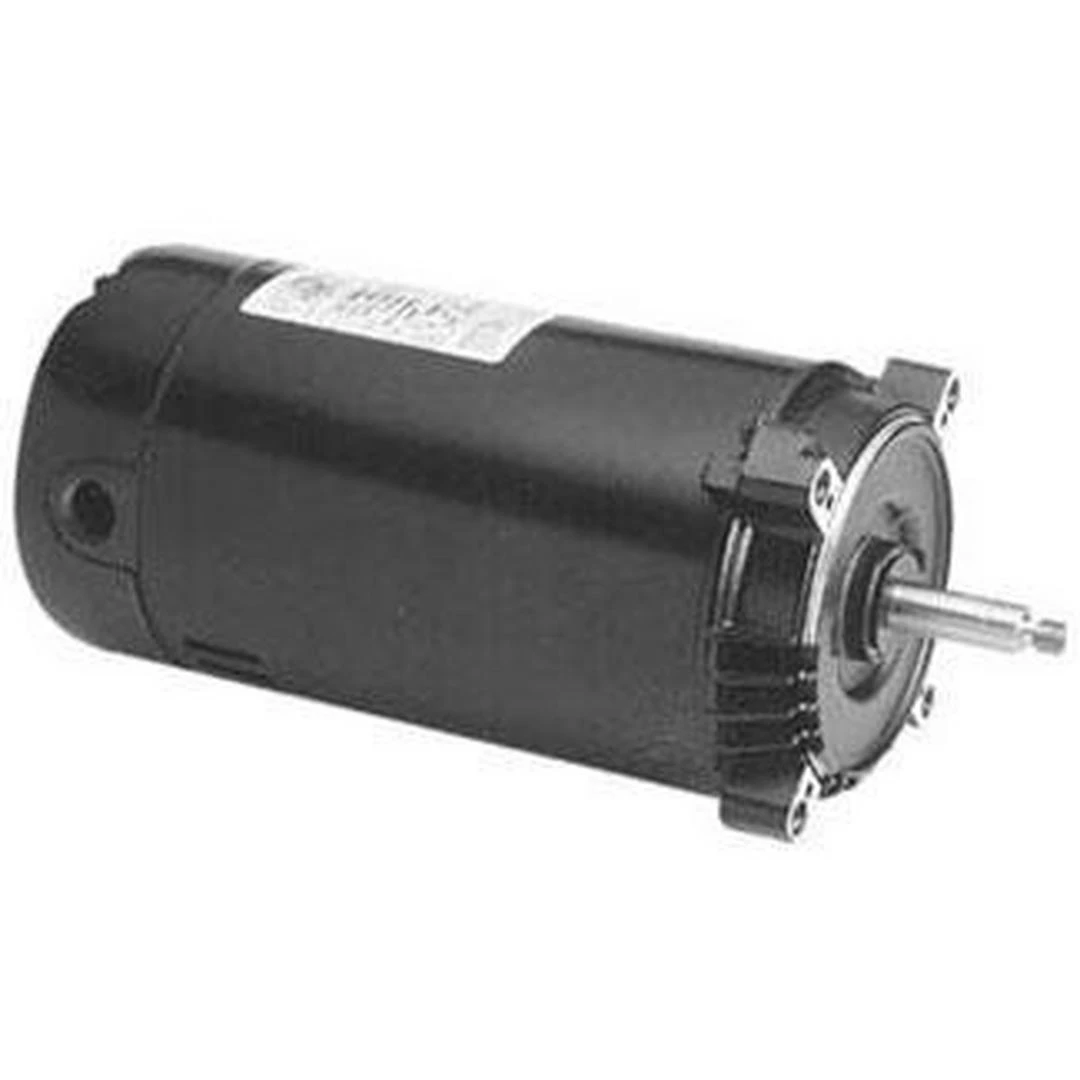

The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design. With horsepower ratings from 1/2″P to 3HP, the NEMA C-Face Pool Filter Motor is Full-Rated and provides long lasting and trustworthy performance. Its standard efficiency design is the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with an open drip proof enclosure, the NEMA C-Face Pool Filter Motor is sure to last.
| Flange Type: | C Flange |
| Shaft Type: | Keyed |
| Flange Type: | J Flange |
| Voltage: | 120V / 240V |
| Horsepower: | 3/4 HP |
| Service Factor: | 1.50 – 1.75 |
| Phase Type: | Single Phase |
| Speed Settings: | Single Speed |
| Voltage: | 115V / 230V |
| Service Factor: | 1.25 – 1.50 |
| Installation Type: | Residential |
| Shaft Type: | Threaded |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Motor Frame: | 56 Frame |
| Compatible Pumps: | SP3007EEAZ |
| Compatible Pumps: | PHPF.75 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Product Type: | Pool Part |
| Pump Speed: | Single |
| Service Factor: | 1.5 |
| Total Horsepower: | 1.13 THP |
