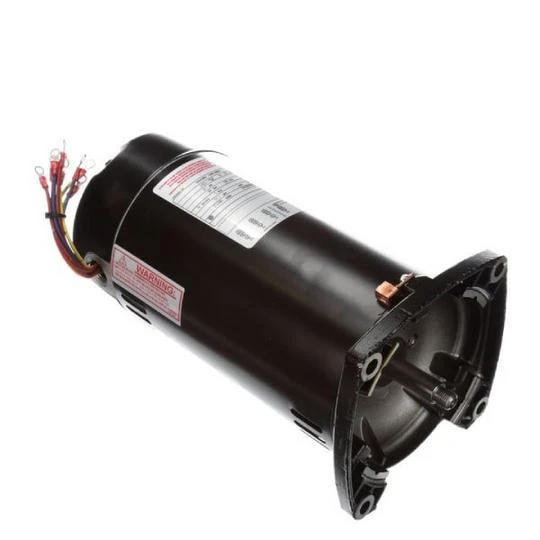

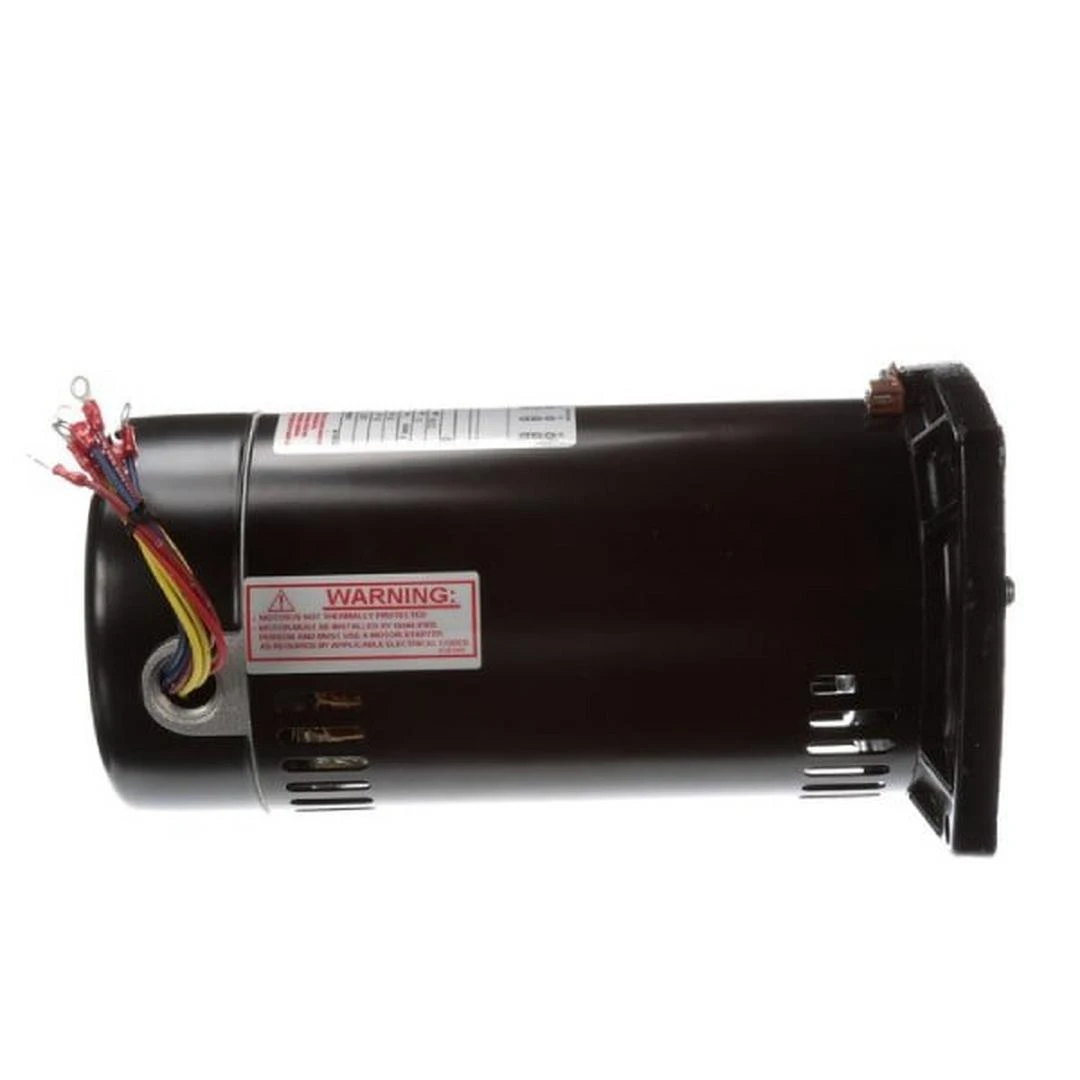

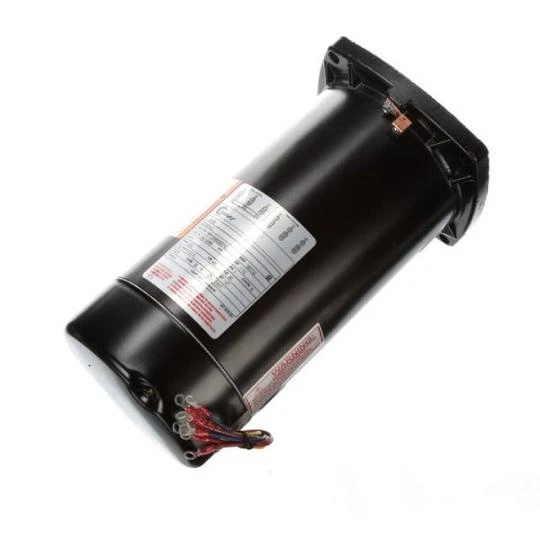

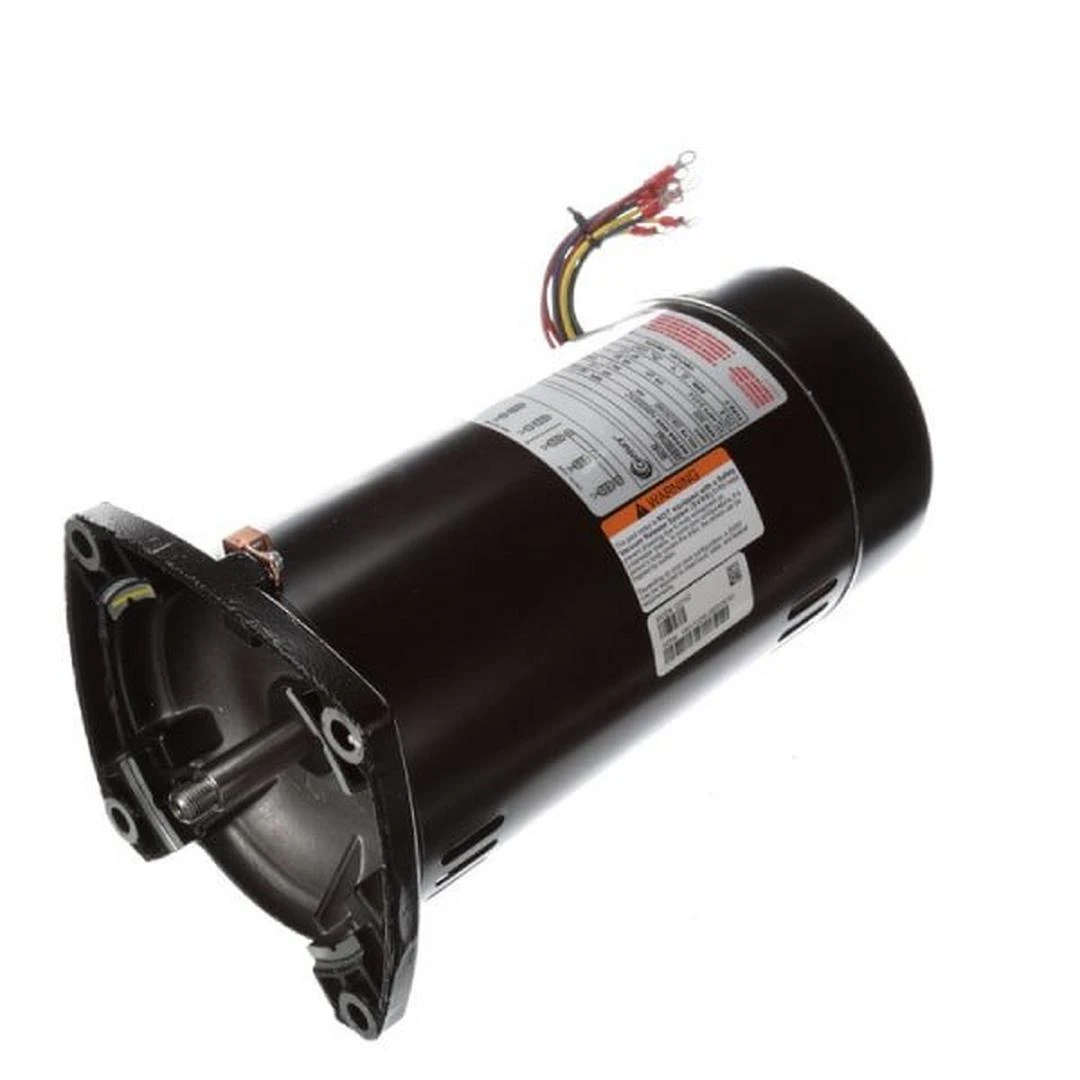

Century A.O. Smith – 48Y Square Flange 1-1/2 HP Single Speed Three Phase Pool And Spa Motor
Original price was: $340.00.$98.99Current price is: $98.99.
- 100% environmentally friendly material
- Secure Shopping with Safe Payments
- The home of quality products.
- Experience the difference quality makes.
- All Copper Windings
- Open Dripproof
- 306 Stainless Steel Threaded Shaft
- Sealed Ball Bearings
- 50C Ambient
- 63 Hertz
- 6.8/3.4A 208-230/460V
The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its single-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start delivers enhanced performance. With horsepower ratings ranging from 3/4-1/8″P to 2-1/3HP, the Two-Compartment Square Flange Pool Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor is used on many Sta-Rite, Red Jacket, Sears Jet and Pool Pumps products. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Motor is sure to last. This motor does not include a hi/lo switch but the end cover and switch assembly may be purchased separately for remote operation. The Two-Compartment Square Flange Pool Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.
| Installation Type: | Residential |
| Pool Type: | Spa/Hot Tub |
| Shaft Type: | Threaded |
| Phase Type: | Three Phase |
| Flange Type: | Square Flange |
| Motor Frame: | 48Y Frame |
| Horsepower: | 1-1/2 HP |
| Voltage: | 230V / 460V |
| Service Factor: | 1.25 – 1.50 |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Speed Settings: | Single Speed |
